SD RF Foil
rFoil® is an aluminum foil-based radiant barrier made up of two reflective
surfaces sandwiched around a high-strength reinforcing woven scrim.
This patented RF foil has an impressively high shielding capacity:
it can block electromagnetic (EM) and radio frequency (RF) signals
from passing through a solid barrier, whether it’s a wall, ceiling, or floor.
rFoil radiant barrier foils are manufactured by CoverTech Fabricating Inc.
and we are their authorized distributor.
rFoil is the standard for radio frequency and infrared (IR) blocking materials
used in US Government and corporate buildings.
This 1,2 meters wide foil dampens up to 85 dB!
Reasons to use RF Shielding Foil:
-
Meets the Department of Defense’s standards for RF/IR interference in Sensitive Compartmented Information Facilities (SCIFs).
-
Meets TEMPEST standards for preventing “electronic eavesdropping,”
a common method for digital theft and espionage.
-
Ensures seamless protection when used alongside RF paint or radiant barrier paint
NB! Custom costs will be added iff applicable.
Taric: 7607209990
Pricelist HERE
SD RF Foil - Technical sheet & application
3-part guide for specification
We suggest TDS tape with EMi / RF properties for fastening .
1 roll = 75 mm x 45 m.

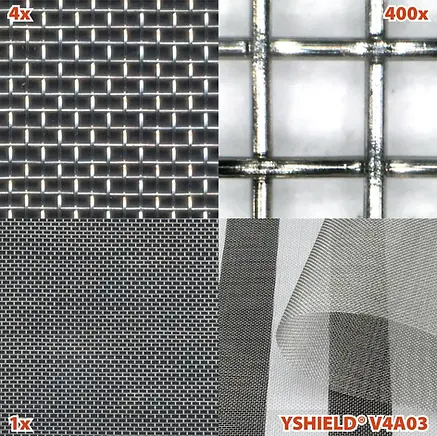

RF shielding mesh V4A03
V4A03 is an extremely fine woven, noncorrosive stainless-steel gauze
for the protection against high-frequency radiation (HF)
and low-frequency electric fields (LF). V4A (AISI 316) is resistant against water,
water vapor, air humidity, mild acids and in coastal areas against salty seawater!
-
Width: 90 cm
-
Length: 25 m roll / by the meter
-
Attenuation: 55 dB
-
Mesh width: 0.3 mm
-
Wire diameter: 0.08 mm
-
Material thickness: 0.16 mm
-
Open area: 54 %
-
Weight: 200 g/m².
-
Color: Silver.
-
Fire-proof material, A1 according DIN 4102:1994.
-
Surface conductivity: 0.03 Ohm (square resistance)
NB! Needs to be grounded!
Pricelist HERE
Expert report, screening attenuation
